TPO Waterproof Coil Extrusion Line

Author: ComeFrom: Date:2019/9/15 16:01:29 Hits:1035

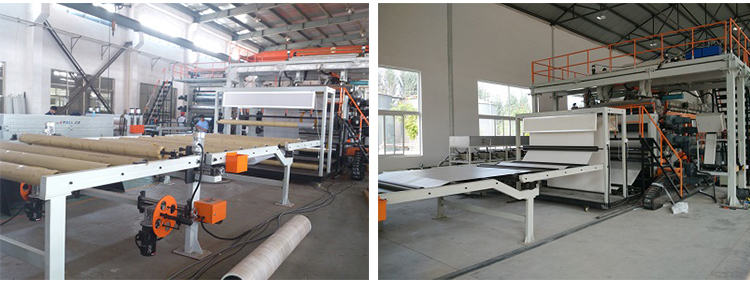

TPO Waterproof Coil Extrusion Line

Application: TPO waterproof coil production line is a new waterproof coil made of thermoplastic polyolefin with antioxidant, anti-aging agent, softener, etc., with polyurethane mesh reinforcement layer in the middle and fabric fiber and aluminum film on the surface. TPO waterproof coil has excellent weather resistance and flexibility. Mainly used for all kinds of roofing, basement, tunnel and other building waterproof engineering.

Gwell TPO waterproof coil production line is a special TPO machine developed by our company based on many years' production experience of our customers. The design concept and technical content are of guiding significance to the industry. The production is stable, with high output, low defect rate and easy operation. It can meet the production of homogeneous coil (H type), fiber backing coil (L type), fabric reinforced coil (P type). The production line is simple in structure and easy to operate. Different equipment components can be configured according to customers' requirements to produce single-layer and multi-layer composite products. It can also be added winding device, and produce internal enhancement products or surface composite non-woven products.



TPO Waterproof Coil Extrusion Line

Type of extruder

Parallel twin-screw extruder

GWP75 / GWP75

Single screw extruder

 GWS130/GWS130

Parallel twin-screw extruder

 GWP95/GWP95

Structure of productTPO;TPO-NET-TPO;NET-TPO-NETTPO;TPO-NET-TPO;NET-TPO-NETTPO;TPO-NET-TPO;NET-TPO-NET
Width of product2100mm2100mm2100mm
Thickness of product1mm - 3mm1mm - 3mm1mm - 3mm
Output1000KG/H1000KG/H1300KG/H
Line speed10m/min 10m/min15m/min

TPO Waterproof Coil Extrusion Line
