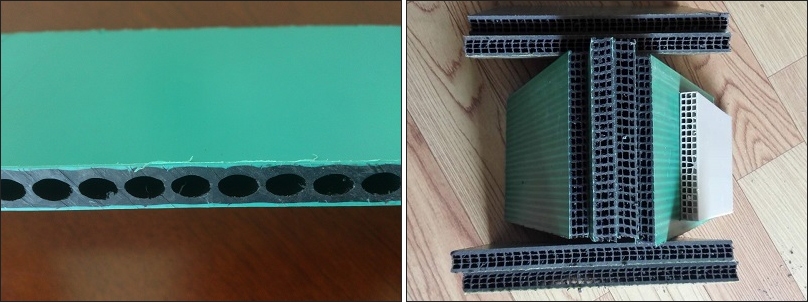

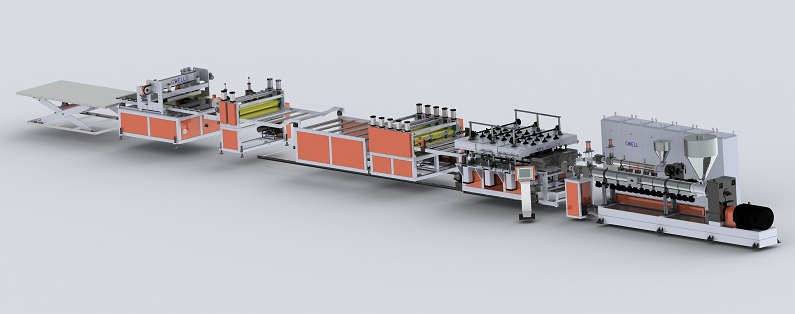

Gwell machinery company is dedicated in manufacturing PP hollow construction template extrusion line.  Gwell absorbs the domestic advanced extrusion technology and own innovation and successful develop this PP hollow construction template extrusion line. This line is compoesd of two single screw extruders (or one single screw extruder and one parallel twin-screw extruder) and  hydraulic screen exchanger, mould, calibration machine,  one time tractor, annealing furnace, cooling box, secondary tractor, cross-cutting machine and conveyor. We provide a full set of production equipment for domestic and foreign companies. The structure of this template has changed from the original O hollow structure, to 米 type, V type, N type, 井 type, and finally fixed to 井 type. It has been accepted by the market in terms of the amount of materials and structural properties. Its products have many advantages, such as smooth surface, small size error, nailable, planed, corrosion-resistant, flame-retardant, etc. Compared with the traditional template, the construction template has the following characteristics:

1. Good water resistance. Even if it is completely immersed in water for several days, it will not be deformed by moisture. Acid and alkali resistant, corrosion resistant, not rot and rust, especially suitable for basement engineering, highway and railway bridge piers and other damp environment.

2. Cement is not easy to stick on it. The template is easy to demoulding after construction.

3. The surface of the plastic template is smooth, no need to brush release agent, so it reduces the cleaning, maintenance costs.

4. Light weight, high efficiency, easy to open and dismantle mold, low labor intensity of handling operation, high construction efficiency.

5. High support strength, not easy to deformation, impact resistance, wear resistance.

6. Low cost, long service life, turnover times can reach more than 100 times. And the used waste board, scrap material can be recycled, which saves cost and reduces pollution. The general use cost can save over 30% than the traditional wood template.

7. Long life, many repeated use times. Finally, the damaged plastic template can be crushed again and reprocessed into a new template, saving resources and meeting the requirements of "green industry".

8. Good heat retaining property, conducive to shorten the construction period.

9. Adopt the way of processing wood to process the plastic template. The template also can be welded, so it can be flexible to do secondary processing in the construction site .

10. Plastic formwork can be processed, planing, sawing, nail, and wood formwork can be used at the same time;

11. Save the process, and improve the construction efficiency. PP hollow plastic construction template's two surfaces (smooth surface or decorative surface) have different effects. For example, after the removal of the formwork by using smooth surface, the wall's surface will be smooth. There will be no need for secondary plastering, saving materials and time, reducing the cleaning and maintenance costs, and the quality of concrete after molding will be stable. If using decorative pattern, it is advantageous to combine with plastering layer. In particular, the decorative pattern used on bridge piers meets the requirements of decorative surface and decorative water, and because the decorative pattern has a special light diffuse reflection effect, avoiding strong light reflection to affect the driver's line of sight, which plays a role of safety protection.

In a word, plastic formwork has more characteristics than conventional building formwork. Plastic formwork will become the ideal product for the construction of the 21st century to replace wood, steel and bamboo with plastic formwork.

Board Specification
Thickness	Specification	Average weight
12mm	915mm×1830mm	21kg
15mm	915mm×1830mm	26kg
12mm	1220mm×2440mm	37kg
15mm	1220mm×2440mm	45kg
Differences among Board
Property	Plastic template	Bamboo template	Wood template
Turnover	40-100 times	6~8 times	3~6 times
Abrasive resistance	Yes	No	No
Corrosion resistance	Great	bad	bad
Toughness	Can be bent into arch formwork	No	No
Impact strength	Great	bad	bad
Drop test	No broken	Easy to break	Easy to break
After water was absorbed	No deformation	Easy to deformation	Easy to deformation
Waste disposal	Can be recycled	No	No
Environment protection	No pollution	pollution	pollution

Products are widely used in:

Transportation: ship, plane, bus, train car, ceiling, car core layer, interior decoration.

Construction, decoration industry: building exterior wall board, interior decoration board, residence, office, public building space, commercial decoration rack, dust-free room board, ceiling board, kitchen utensils, sanitaryware.

Advertising: screen printing, computer lettering, advertising signs, boards, signs board.

Industrial application: chemical industry anti-corrosion engineering, heat forming parts, cold storage board, special cold protection engineering, environmental protection board.

Other USES: formwork, sports equipment, breeding materials, waterfront moisture-proof facilities, water resistant materials, art materials all kinds of portable partition.

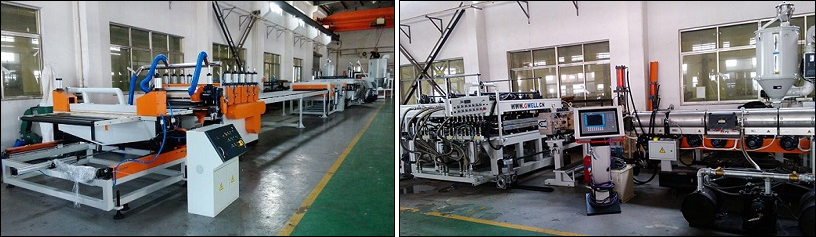

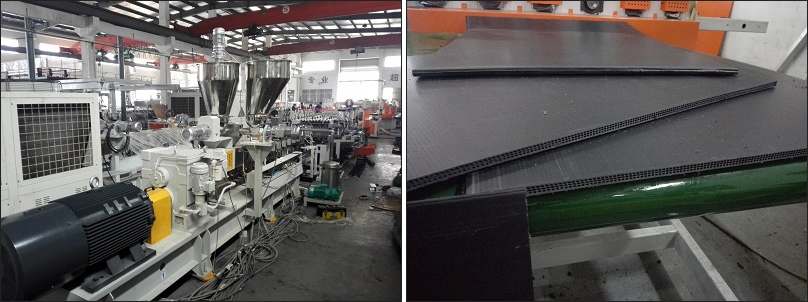

PP Hollow Construction Plate Extrusion Line

Type of extruder	Single screw extruder GWS120/GWS65	Twin screw extruder GWP75/ single screw extruder GWS65	Single screw extruder GWS120	Twin screw extruder GWP75
Structure of product	Three layersA/B/A	Three layersA/B/A	Single layerA	Single layerA
Width of Product	915mm - 1830mm	915mm - 1830mm	915mm - 1830mm	915mm - 1830mm
Thickness of product	12mm,15mm,18mm,21mm	12mm,15mm,18mm,21mm	12mm,15mm,18mm,21mm	12mm,15mm,18mm,21mm
Output	450KG/H	450KG/H	350KG/H	350KG/H
