CA,PEEK Special Material Plate Extrusion Line

Author: ComeFrom: Date:2019/9/14 20:33:32 Hits:999

CA,PEEK Special Material Plate Extrusion Line

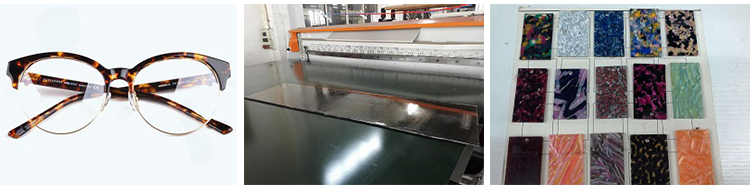

CA cellulose acetate Sheet
Acetic acid is a kind of natural cellulose acetate, the main part of it is refined from pulp, and the plate because it is natural, is non-toxic harmless and has environmental protection performance. A lot of hair accessories are now composed of this kind of plate. Compared with the raw materials of other the same type accessories, toughness, gloss, texture of  CA cellulose acetate Sheet have significantly improved. It is currently the high-end jewelry manufacturers preferred material. CA acetate plastic particles are suitable for the production of low, medium and high grade glasses, metal glasses foot cover, high-grade hair clips, watchband, screwdriver, screwdriver handle, etc. The texture of CA plastic material is very good, and the surface looks like that is emitting a natural luster, natural color, crystal clear, with a stylish texture. Product has good toughness, and is not easy to truncate, deformation.

PEEK plate is a kind of thermoplastic which has high temperature resistant and high glass transition temperature (143 ℃) and melting point (334 ℃). PEEK plate special plastic products has been successfully applied in automobile engine transmission parts such as wear-resisting support head gasket, motor, solenoid valve core sleeve, textile printing and dyeing machinery chain collar, dust cover, pump, vane, mouth ring, the gear, high temperature and high pressure seal valve, ball filler, compressor valve plates, piston ring, sealing ring , the guide ring, support ring, mushroom head, single screw air compressor star wheel locator, medical apparatus and instruments for bones, CMP wear ring, wafer, chip clip (tweezers), IC test plate, etc.

Gwell CA plate and PEEK plate production line can meet the production requirements of products with width of 1220mm and thickness of 2-20mm, the maximum output can reach 650KG/H, and the products have high surface smoothness. China has a large number of equipment ownership, and a large number of exports to Italy, the United States, India, Pakistan, Russia, the Middle East and other countries and regions.

CA,PEEK Special Material Plate Extrusion Line

Extruder SpecificationSingle screw extruder
GWS90
Single screw extruder
GWS/120
Parallel twin screw extruder
GWP75
Suitable MaterialCA、PEEK CA、PEEK CA、PEEK
Thickness of Product2mm - 20mm2mm - 20mm2mm - 20mm
Width of Product600mm - 1000mm1000mm - 1500mm1200mm - 1500mm
Output200KG/H - 250KG/H350KG/H - 400KG/H400KG/H - 500KG/H

CA,PEEK Special Material Plate Extrusion Line
