PC PMMA GPPS PET MS Transparent Sheet Extrusion line

Author: ComeFrom: Date:2019/9/14 20:45:16 Hits:1284

PC PMMA GPPS PET MS Transparent Sheet Extrusion line

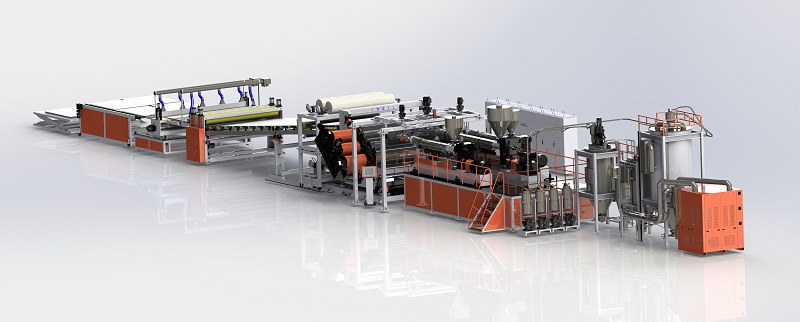

PC PMMA GPPS PET MS transparent sheet extrusion line

Gwell has absorbed and digested the advanced extrusion technology of Western countries about plastic transparent sheet production line. Its main components are selected from all over the world (such as screw, barrel, drum, etc.). The energy consumption, intelligence, automation, safety standards, technical standards, etc. of its complete sets of equipment have all reached or approached the world standards. This series of products have a number of inventions and utility model patents, which replace imported equipment and have a cost-effective advantage. Advanced transparent board products are widely used in optics, home appliances, construction engineering, decoration, furniture, advertising, handicrafts and other industries and civilian industries. Its quality has reached the world's product performance. We have a team of experts and process engineers to help users debug and produce high-quality products.

1.Introduce of PC endurance board

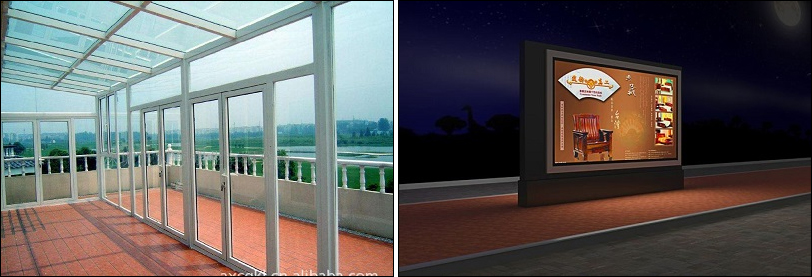

PC endurance board has the characteristics of abrasion resistance and collision resistance, and it exceeds ordinary tempered glass in terms of strength. And it also has high toughness, can be bent to more than 90 degrees, and has good processing properties. Light texture and convenient transportation. The light transmittance is high, reaching 88%. A wide range of applications, such as: gardens, playgrounds, exotic decorations and gallery rest areas; interior and exterior decoration of commercial buildings, curtain walls of modern urban buildings; aviation transparent containers, motorcycle windshields, airplanes, trains, ships, automobiles, ships, submarines and glass military and police shields; the layout of telephone booths, advertising signs, and light box advertising exhibitions; isolation barriers between highways and urban viaducts.

2.Introduce of PC endurance board production machine

The PC endurance board production machine manufactured by GWELL has absorbed and digested the advanced extrusion technology of western countries. More than ten years of experience in manufacturing machines has prompted us to continuously improve the machine, improve the quality of the PC endurance board production machine and save energy, so that the PC endurance board produced has higher light transmittance, surface flatness and less use energy consumption to make more products.

3.Introduce of PMMA light guide sheet

The main material of the light guide plate is an optical PMMA plate, which has high light transmittance, good weather resistance and good rigidity. The light transmittance is as high as 92%--93%. The heat distortion temperature is 100°C, and the maximum use temperature can reach 85°C. Because the light loss through the PMMA light guide plate is small, it is called optical glass.It can be used for the backlight of screen displays, and it can also be used for advertising light boxes.

4.Introduce of PMMA light guide plate production machine

The PMMA light guide plate production equipment manufactured by GWELL company uses GWELL's exclusive screw design and three-roller calender design to prevent defects such as crystal spots, black spots and whitening. With our auxiliary machinery, PMMA light guide plates can be produced more efficiently.

5.Introduce of PC and GPPS diffuser board

The light transmittance of this product is more than 80%, and the ordinary PC milk white board is only 20%; through the diffusion of the diffuser board, the entire surface of the board forms a uniform light-emitting surface without forming a dark area. No residual image will be formed on the screen, making the picture more realistic and achieving a crystal clear visual effect. It has few crystal points, high light transmission, high smoothness and good flatness. Also it has super impact resistance: 250 times of the strength of ordinary glass, 150 times more than tempered glass, and 30 times higher than that of tempered glass. Therefore, it will not break in the event of various accidents. Better protect your property and life safety. The lighter weight is convenient for the facilitates construction and reduces costs. UV coating on PC and GPPS boards can prevent ultraviolet rays from damaging indoor products and effectively extend the service life of PC boards. And combustion will not produce toxic gas. This product has good weather resistance and can adapt to harsh weather conditions of -40°C to 120°C, while still maintaining its performance.

6.PC/GPPS diffusion board production machine: This machine is very similar to the PC endurance board production equipment

PMMA (acrylic), GPPS, MS transparent plates: PMMA (acrylic), GPPS, MS transparent plates are specially treated plexiglass, which is a replacement product of ordinary plexiglass. The light box made of plexiglass has good light transmission performance and pure color. Rich in color, beautiful and flat, taking into account both day and night effects, and long service life.

Widely used in instrumentation, instrument parts, lamps, decoration, building materials, aircraft, auto parts, medical equipment, craft products, electrical insulating materials, specimens, signs and various lighting industry, culture, education, and daily necessities.

PMMA (acrylic), GPPS, MS transparent board production machine: This machine is very similar to PMMA/GPPS endurance board production equipment.

PC PMMA GPPS PET MS transparent sheet extrusion line Basic parameters (please consult sales engineer for details)

Type

GWS90-800

GWS120-1000

GWS150-1500

Raw materials

PC PMMA

Product width

600mm

800mm

1220mm

Product thickness

0.5-5mm

0.5-5mm

0.5-5mm

Extruder type

Single screw GWS90/35

Single screw GWS120/35

Single screw GWS150/35

Design output

200Kg/h

350Kg/h

450kg/h


PC PMMA GPPS PET MS Transparent Sheet Extrusion line

7.Introduce of PET (modified) transparent thick plate

high mechanical strength, rigidity and hardness. Good sliding performance and abrasion resistance, good electrical insulation. It has very good dimensional stability, weather resistance, and chemical resistance.

PET thick plates are processed from ordinary APET raw materials and special modified PET raw materials. Due to its superior cost performance, it can replace PC/PMMA/GPPS board in many occasions such as construction, decoration, and advertising. Our equipment can produce 8mm thick APET and PETG sheets.

2.Introduce of PET (modified) transparent thick plate production equipment

 The PET thick plate extrusion line developed by GWELL Company is currently filling the lack of this kind of equipment in the market. PET thick plates have broad prospects in China. Compared with ordinary PET sheets, the maximum thickness can only reach 1.5mm, while the maximum thickness of PET thick plates can reach 5mm.

Type

GWS120-1500

GWS120-2300

GWP85-2300

Raw materials

APET,PETG

Product width

1220mm

2100mm

2100mm

Product thickness

1-5mm

1-5mm

1-5mm

Extruder type

Single screw GWS120/35

Single screw GWS150/35

Twin screw GWP85/35

Design output

350Kg/h

450Kg/h

600kg/h


PC PMMA GPPS PET MS Transparent Sheet Extrusion line
